Claude connector & admin consent

Builders reach Sprig through a remote MCP connector: they sign in with their own work account, consent once, and their apps and data flow through the gateway as themselves. Three one-time steps make that possible: a tenant admin grants consent and populates the access groups, and a Claude org owner adds the connector.

What the installer created

Running sprig infra install --domain <apps-domain> ... registers four Entra app registrations and two security groups:

Object	What it is
sprig-gateway	The API the builder’s token is issued for. Its Application ID URI is the gateway’s MCP URL.
sprig-connector	The confidential client you paste into the Claude org admin console (below).
sprig-cli	The public client Claude Code uses for native sign-in (loopback redirect).
sprig-obo	Lets the gateway act as the signed-in user against the database. Its secret lives only in Key Vault.
sprig-users group	Holds everyone who uses Sprig. The gateway’s builder and viewer roles are already assigned to it; membership is the only thing you manage (step 2).
sprig-operators group	Holds the Ops team (share approvals + the admin console). The platform API’s Ops role is already assigned to it; again, you manage only membership (step 2).

The installer prints the connector client id and secret once, at the end of the run:

Claude org admin — add this remote MCP connector (surfaced ONCE):
  Client ID:     ****
  Client secret: ****
  Auth URL:      https://login.microsoftonline.com/<tenant>/oauth2/v2.0/authorize
  Token URL:     https://login.microsoftonline.com/<tenant>/oauth2/v2.0/token

Store the secret in your password manager immediately; Entra never shows it again. If it is lost, rotate it with az ad app credential reset --id <connector-client-id> and re-enter the new value in the Claude console.

Step 1 - Grant admin consent (tenant admin)

The installer attempts this for you at the end of sprig infra install --domain <apps-domain> .... If the acting identity holds Global Administrator or Privileged Role Administrator, the gateway’s delegated permissions are consented tenant-wide automatically and you can skip this step. The install log prints either “Granted tenant-wide admin consent…” or the exact command to run if it could not. Run the command below only as that fallback (or after adding a new delegated permission to the gateway):

az login   # an account that can grant tenant-wide admin consent
az ad app permission admin-consent --id <gateway-client-id>

This consents the gateway’s delegated permissions (Microsoft Graph sign-in and group read for the per-app access check, and the Azure SQL database permission it uses on each builder’s behalf). The connector and CLI are pre-authorized on the gateway scope, so no separate consent screen appears for them.

The gateway’s permission to call the platform API (what powers the Ops admin console at https://admin.<apps-domain>) is consented automatically by the installer; you don’t need to grant it here or re-run this command after an upgrade for it to keep working.

Note

The account must be a Global Administrator or Privileged Role Administrator. Granting consent is a deliberate, audited action; it does not give anyone standing access, and each builder still signs in as themselves.

Step 2 - Populate the access groups (tenant admin)

Two groups gate access, and both work the same way: an app role is already assigned to each group, so membership is the only lever:

• sprig-users: the gateway’s builder/viewer roles. A signed-in user outside it authenticates fine but holds no role, and the gateway refuses them. Add everyone who should use Sprig.
• sprig-operators: the platform API’s Ops role (approve/reject share requests, the admin console at https://admin.<apps-domain>). Add only the Ops team. -o <ops-upn> at install already added that person.

az ad group member add --group sprig-users     --member-id <user-object-id>
az ad group member add --group sprig-operators --member-id <ops-user-object-id>

Caution

Add users as direct members. Entra emits the app-role roles claim only for a group’s direct members. Nesting another group (for example an all-employees group) inside sprig-users or sprig-operators does not propagate the role to that group’s members, so they would sign in with no role. For “all staff” semantics use a dynamic-membership group as the group itself (configure the membership rule on sprig-users), not a nested static group. Group-based app-role assignment requires Entra ID P1 or P2.

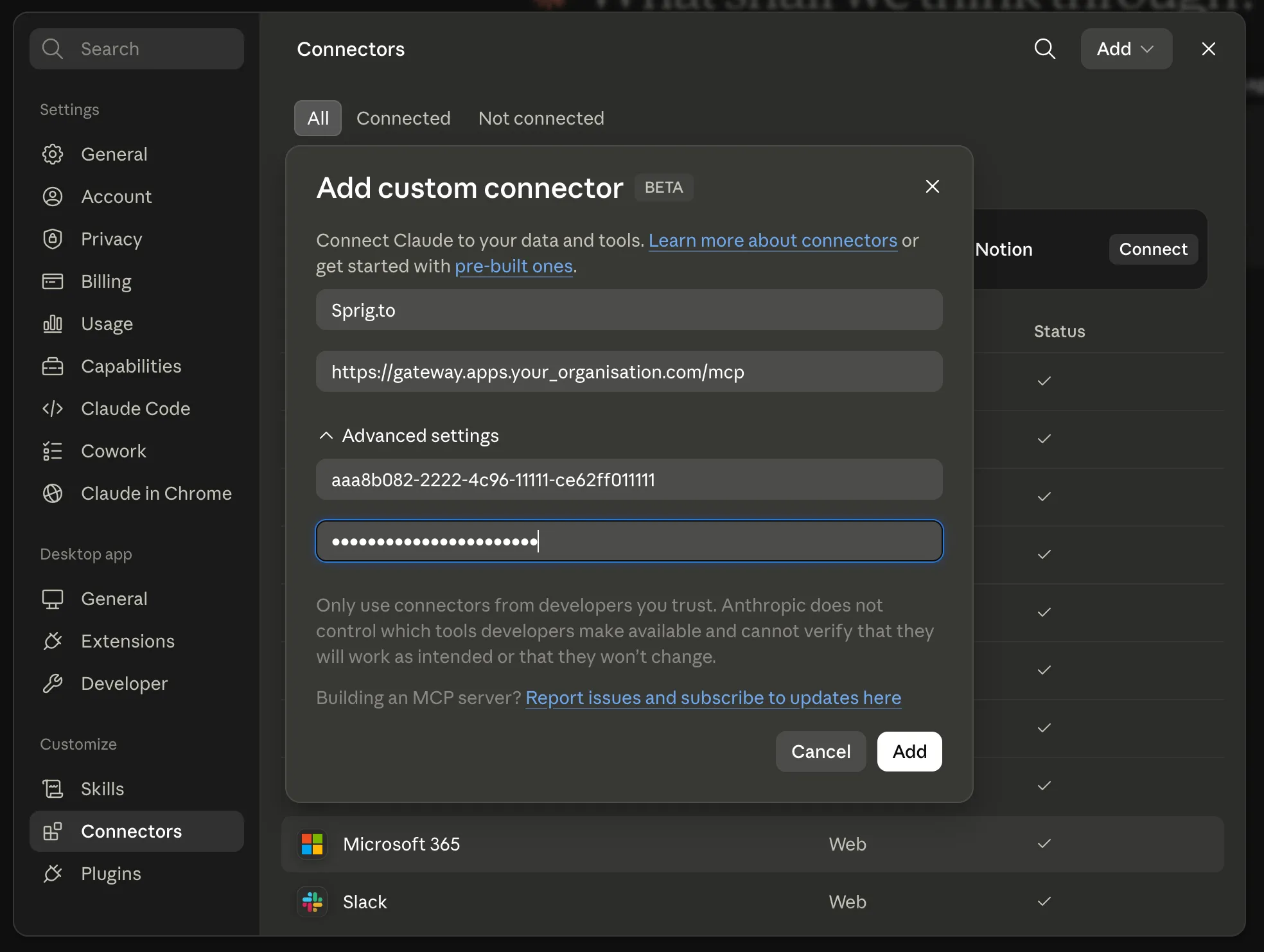

Step 3 - Add the connector in Claude (org owner)

In the Claude admin console (Settings → Connectors → Add custom connector):

1. Name: Sprig.
2. Remote MCP server URL: your gateway’s MCP URL (https://gateway.<apps-domain>/mcp).
3. OAuth Client ID / Client secret: the values the installer printed.
4. Authorization / Token URL: the two URLs the installer printed.
5. Save, then enable the connector for the workspaces that should have Sprig.

The same Add custom connector dialog appears under a personal Settings → Connectors on any plan, so you can verify the connector end to end as yourself before rolling it out. The client ID and secret go under Advanced settings.

Step 4 - First builder sign-in (per user)

The first time a builder uses Sprig, Claude sends them through a normal Microsoft sign-in. They approve access once; Claude holds the resulting token and refreshes it silently thereafter. Nothing is installed on their machine and they hold no secrets.

To confirm end to end: enable the connector for your own account, open a new Claude conversation, and ask Sprig to list what you can see. A successful, authenticated response completes the connector setup.

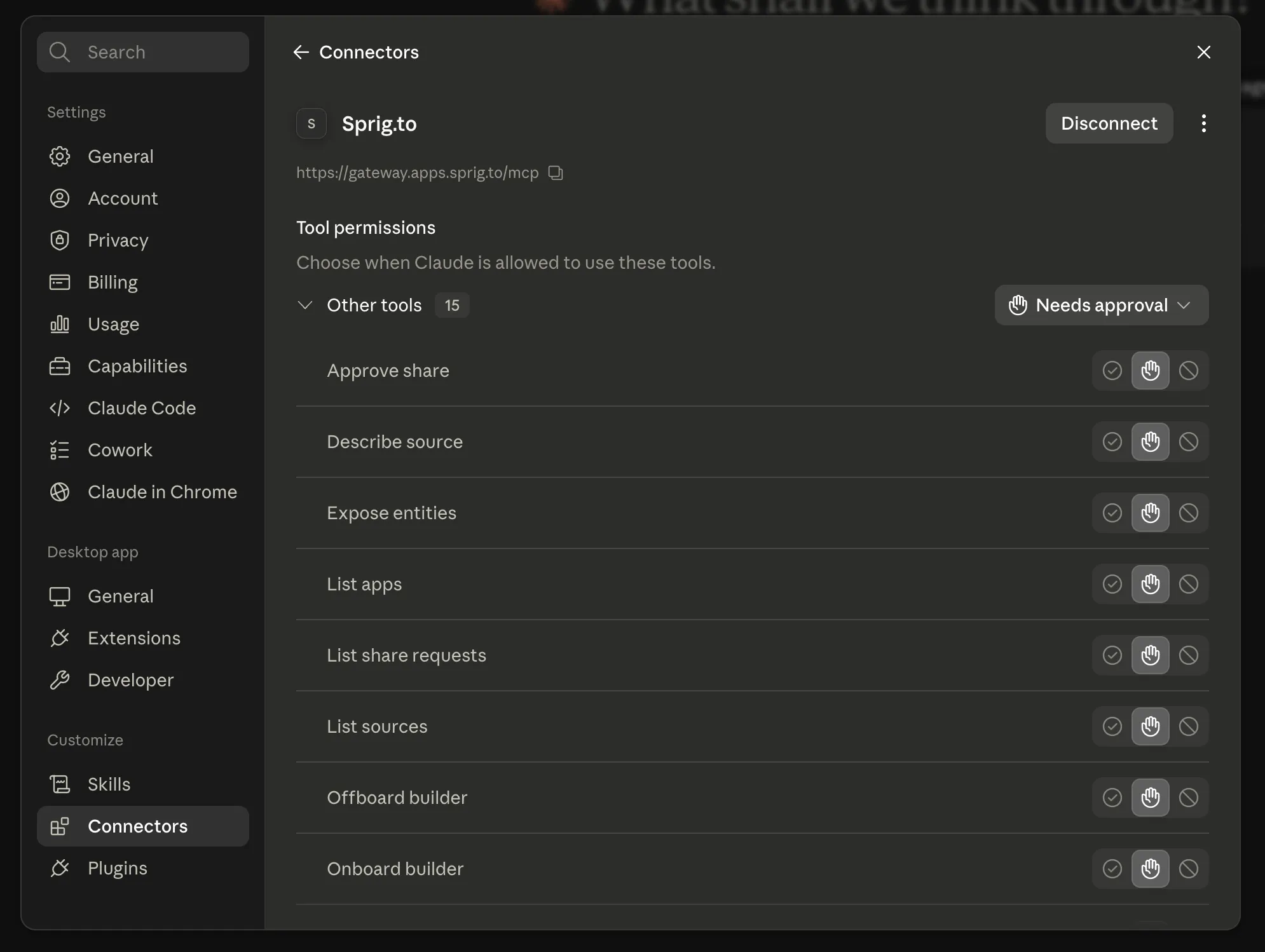

Tool permissions

Once connected, Sprig’s tools appear under Settings → Connectors → Sprig, each with its own allow / ask / deny control. These controls decide when Claude may call a tool. They are a convenience, not the security boundary.

The administrative tools (Approve share, Onboard/Offboard builder, Expose entities, Register source) are listed for everyone, but authorization is enforced on the platform, not in this dialog: a builder without the Ops role is refused whatever the approval control shows. Builders succeed only at builder tools (list apps, publish, request a share); the Ops role is what unlocks the administrative ones, the same role that governs the Ops admin console.

Claude Code (optional, for builders on the CLI)

Builders who use Claude Code instead of claude.ai connect the same gateway as a native client: no connector secret, just the public sprig-cli client id from your install descriptor:

claude mcp add --transport http sprig https://gateway.<apps-domain>/mcp \
  --client-id <cli-client-id> --callback-port 8899

The first claude mcp login sprig opens the same Microsoft sign-in in a browser and caches the token locally per user.
